| Model | Maximum working pressure | Capacity FAD | Installed motor power | Driving Mode& Cooling Method |
Dimensions(mm) | Weight |
Noise level** [dB(A)] |
Air outlet pipe diameter | ||||
| bar(g) | m³/min | cfm | kW | hp | L | W | H | kg | ||||
| DAV-5 | 7.5 | 0.27-0.89 | 9.48-31.59 | 5.5 | 7.5 | Direct Driven Air Cooling |
900 | 600 | 860 | 315 | 75 | G3/4" |
| 8.5 | 0.27-0.88 | 9.37-31.22 | 5.5 | 7.5 | 900 | 600 | 860 | 315 | 75 | G3/4" | ||
| 10.5 | 0.23-0.76 | 8.03-26.76 | 5.5 | 7.5 | 900 | 600 | 860 | 315 | 75 | G3/4" | ||
| DAV-7 | 7.5 | 0.36-1.19 | 12.60-42.00 | 7.5 | 10 | 900 | 600 | 860 | 315 | 75 | G3/4" | |
| 8.5 | 0.35-1.17 | 12.38-41.26 | 7.5 | 10 | 900 | 600 | 860 | 315 | 75 | G3/4" | ||
| 10.5 | 0.30-1.01 | 10.70-35.68 | 7.5 | 10 | 900 | 600 | 860 | 315 | 75 | G3/4" | ||
| DAV-11 | 7.5 | 0.54-1.80 | 19.07-63.56 | 11 | 15 | 1050 | 650 | 900 | 324 | 75 | G3/4" | |
| 8.5 | 0.54-1.79 | 18.98-63.19 | 11 | 15 | 1050 | 650 | 900 | 324 | 75 | G3/4" | ||
| 10.5 | 0.48-1.61 | 17.06-56.87 | 11 | 15 | 1050 | 650 | 900 | 324 | 75 | G3/4" | ||
| 13 | 0.41-1.37 | 14.50-48.32 | 11 | 15 | 1050 | 650 | 900 | 324 | 75 | G3/4" | ||
| DAV-15 | 7.5 | 0.73-2.43 | 25.76-85.86 | 15 | 20 | 1100 | 650 | 920 | 453 | 75 | G1-1/4" | |
| 8.5 | 0.71-2.37 | 25.09-83.63 | 15 | 20 | 1100 | 650 | 920 | 453 | 75 | G1-1/4" | ||
| 10.5 | 0.63-2.09 | 22.19-73.97 | 15 | 20 | 1100 | 650 | 920 | 453 | 75 | G1-1/4" | ||
| 13 | 0.57-1.92 | 20.30-67.65 | 15 | 20 | 1100 | 650 | 920 | 453 | 75 | G1-1/4" | ||
| DAV-18 | 7.5 | 0.93-3.09 | 32.78-109.28 | 18.5 | 25 | 1300 | 800 | 1050 | 453 | 75 | G1-1/4" | |
| 8.5 | 0.90-3.01 | 31.89-106.30 | 18.5 | 25 | 1300 | 800 | 1050 | 453 | 75 | G1-1/4" | ||
| 10.5 | 0.81-2.68 | 28.43-94.78 | 18.5 | 25 | 1300 | 800 | 1050 | 453 | 75 | G1-1/4" | ||
| 13 | 0.65-2.16 | 22.86-76.20 | 18.5 | 25 | 1300 | 800 | 1050 | 453 | 75 | G1-1/4" | ||
| DAV-22 | 7.5 | 1.09-3.64 | 38.58-128.60 | 22 | 30 | 1300 | 800 | 1050 | 477 | 75 | G1-1/4" | |
| 8.5 | 1.09-3.62 | 38.36-127.86 | 22 | 30 | 1300 | 800 | 1050 | 477 | 75 | G1-1/4" | ||
| 10.5 | 1.00-3.35 | 35.46-118.20 | 22 | 30 | 1300 | 800 | 1050 | 477 | 75 | G1-1/4" | ||
| 13 | 0.79-2.63 | 28.18-93.92 | 22 | 30 | 1300 | 800 | 1050 | 477 | 75 | G1-1/4" | ||
| DAV-30 | 7.5 | 1.58-5.26 | 55.75-185.84 | 30 | 40 | 1400 | 900 | 1200 | 682 | 78 | G1-1/2" | |
| 8.5 | 1.57-5.24 | 55.53-185.10 | 30 | 40 | 1400 | 900 | 1200 | 682 | 78 | G1-1/2" | ||
| 10.5 | 1.41-4.72 | 49.95-166.51 | 30 | 40 | 1400 | 900 | 1200 | 682 | 78 | G1-1/2" | ||
| 13 | 1.25-4.18 | 44.27-147.56 | 30 | 40 | 1400 | 900 | 1200 | 682 | 78 | G1-1/2" | ||
| DAV-37 | 7.5 | 2.06-6.87 | 72.81-242.71 | 37 | 50 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | |
| 8.5 | 2.06-6.85 | 72.59-241.97 | 37 | 50 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | ||
| 10.5 | 1.77-5.89 | 62.44-208.14 | 37 | 50 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | ||
| 13 | 1.44-4.80 | 50.85-169.49 | 37 | 50 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | ||

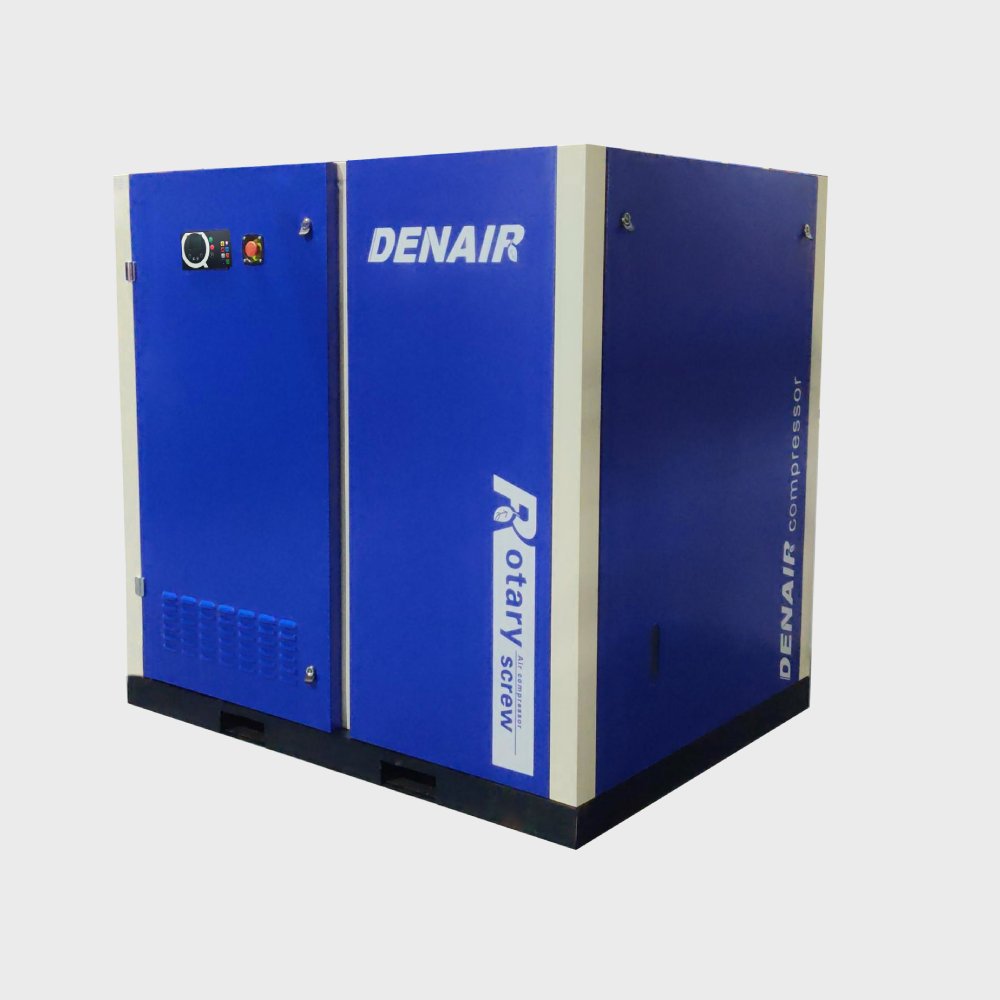

| DAV-45 | 7.5 | 2.40-8.01 | 84.86-282.85 | 45 | 60 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | |
| 8.5 | 2.39-7.98 | 84.52-281.74 | 45 | 60 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | ||
| 10.5 | 2.18-7.25 | 76.83-256.09 | 45 | 60 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | ||
| 13 | 1.89-6.29 | 66.68-222.27 | 45 | 60 | 1400 | 900 | 1200 | 728 | 78 | G1-1/2" | ||
| DAV-55 | 7.5 | 3.09-10.28 | 108.94-363.14 | 55 | 75 | 1800 | 1200 | 1400 | 1310 | 80 | G 2" | |
| 8.5 | 3.06-10.20 | 108.05-360.16 | 55 | 75 | 1800 | 1200 | 1400 | 1310 | 80 | G 2" | ||
| 10.5 | 2.90-9.66 | 102.36-341.21 | 55 | 75 | 1800 | 1200 | 1400 | 1310 | 80 | G 2" | ||
| 13 | 2.36-7.87 | 83.41-278.02 | 55 | 75 | 1800 | 1200 | 1400 | 1310 | 80 | G 2" | ||
| DAV-75 | 7.5 | 3.89-12.97 | 137.37-457.91 | 75 | 100 | 1800 | 1200 | 1400 | 1325 | 80 | G 2" | |
| 8.5 | 3.86-12.87 | 136.37-454.57 | 75 | 100 | 1800 | 1200 | 1400 | 1325 | 80 | G 2" | ||
| 10.5 | 3.43-11.42 | 120.98-403.28 | 75 | 100 | 1800 | 1200 | 1400 | 1325 | 80 | G 2" | ||
| 13 | 2.81-9.37 | 99.24-330.80 | 75 | 100 | 1800 | 1200 | 1400 | 1325 | 80 | G2" | ||
